SCAHT-3624120-1100
Description
- Make: DELTA H®
- Model: SCAHT®-3624120-1100
- Serial Number: 11-015
- Year Built: 2011
- Heated: Electric
- System was fully functional at the time of removal, and has been well maintained by a major aircraft parts supplier
- Overall, in pristine condition, offered with repaired refractory, restored electrical system, and updated / serviced mechanical components
- Meets AMS2750F and AMS2770R; BAC 5602 and 5621K; Airbus 80-T-36-1010; USAF/NAVAIR TO 1-1A-9; also meets all necessary requirements for Nadcap Accreditation
- Furnace Chamber operating range 200°F – 1100⁰F, qualified as Class 1 or 2 (AMS2750F)
- Features our exclusive AGING MODETM system enabling a “furnace” to rapidly cool and behave like an “oven”
- Digital Paperless Process Recorder with AMS2750 software – Honeywell MiniTrend with DELTA H configured TrendServer Pro Software
- Instrumentation Type C (AMS2750F) as supplied, can also be readily configured for Instrumentation Type A or B
- Independent programmable chamber temperature controllers, high temperature limit and alarms
- Standard oven and furnace safety features per NFPA-86 and wiring practices per NFPA-70/79 – current editions
- External TUS and SAT ports – and other exclusive DELTA H® Aerospace Systems features
- Includes Quench Delay Recording on Batch Records
- Three-year supply of thermocouples – including replacement operational sets and full System Accuracy Test set with usage tags, individual serial numbers, and NIST traceable certifications

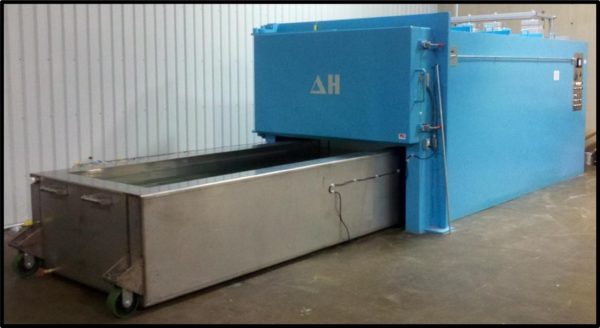

- Manually operated stainless steel roll-away quench tank with mechanical agitation and temperature monitoring
- Optional Power Drive System is available for quench tank
- Certified TUS / Working Volume: 36” W x 24” H x 120” L – VERY LARGE TUS VOLUME
- CAPABLE OF 3 SECOND QUENCH OF 10 FEET LONG PART – Per video linked here
- Outside Overall Dimensions: 96” (8’) W x 78” (6.5’) H x 204” (17’) L
- Utilities: 480 VAC, 3 Ph, 60 Hz, 75 KW, 200 Amp Service, 130 FLA
- Ready to ship within 6-8 weeks or less with optional full week of start-up and training services
- Plug-and-Play
- Optional Power Drive for Quench Tank Upgrade: $25,000
- Shipping from Carroll, Ohio 43112
- Three-month warranty included along with DELTA H’s unparalleled customer support services
